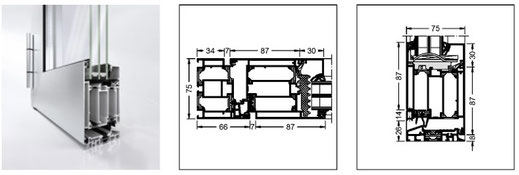

SCHÜCO Door System AD UP 75

Universal use as a high-traffic object door and design-oriented front door

Outstanding insulation properties combined with high stability – the Schüco AD UP 75 door system with a basic depth of 75 mm offers high functional reliability for all requirements in high-end residential and commercial construction.

With its groundbreaking design principle and modular sealing system, the system sets standards for aluminum door systems in terms of thermal insulation, tightness, resilience, and durability.

With a broad portfolio of equipment and design options, it enables requirement-oriented, design-oriented door solutions for all living and working areas.

The door system can be perfectly combined with door communication and access control systems.

Glass & Fillings Thickness

• Glass and insert fillings 13 mm to 53 mm

• Glued top panels 24 mm to 64 mm (one-sided), 75 mm (both sides)

• Mechanically attached top panels 48 mm to 67 mm

Thermal Performance

mit Psi-Wert 0,031 W/mK und
Uₙ-Wert 0,5 W/(m²K)
Uₙ-Wert 0,7 W/(m²K)

mit Psi-Wert 0,036 W/mK und
Uₙ-Wert 1,0 W/(m²K)

Thermal Performance (Element)

(Element size W × H: 48” × 86”)

• Uₙ-Wert 0,96 W/(m²K)

• Uₙ-Wert 1,10 W/(m²K)

• Uₙ-Wert 1,30 W/(m²K)

Options

• Barrier-free zero threshold

• Illuminated LED design handle

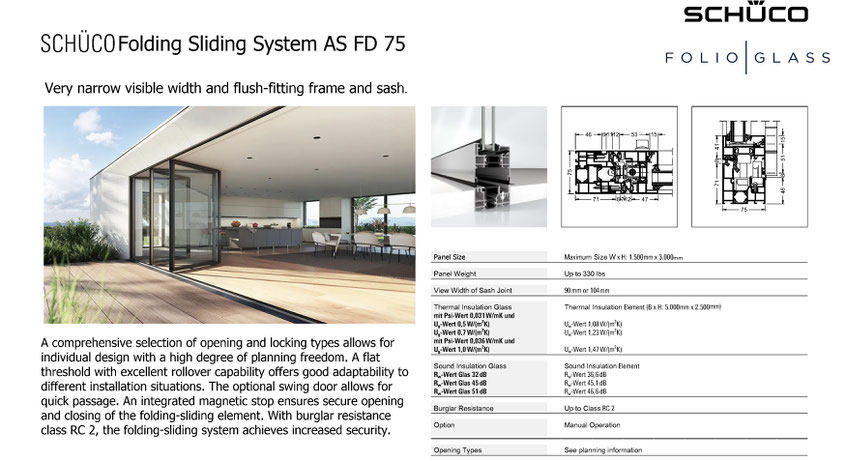

SCHÜCO Folding Sliding System AS FD 75

Very narrow visible width and flush-fitting frame and sash.

A comprehensive selection of opening and locking types allows for individual design with a high degree of planning freedom.

A flat threshold with excellent rollover capability offers good adaptability to different installation situations. The optional swing door allows for quick passage.

An integrated magnetic stop ensures secure opening and closing of the folding-sliding element.

With burglar resistance class RC 2, the folding-sliding system achieves increased security.

The door system can be perfectly combined with door communication and access control systems.

Panel Size

Maximum Size W × H: 1,500 mm × 3,000 mm

Panel Weight

Up to 330 lbs

View Width of Sash Joint

90 mm or 104 mm

Thermal Performance

mit Psi-Wert 0,031 W/mK und
Uₙ-Wert 0,5 W/(m²K)
Uₙ-Wert 0,7 W/(m²K)

mit Psi-Wert 0,036 W/mK und
Uₙ-Wert 1,0 W/(m²K)

Thermal Insulation Glass

mit Psi-Wert 0,031 W/mK und

• Uₓ-Wert 0,5 W/(m²K)

• Uₓ-Wert 0,7 W/(m²K)

mit Psi-Wert 0,036 W/mK und

• Uₓ-Wert 1,0 W/(m²K)

Burglar Resistance

Up to Class RC 2

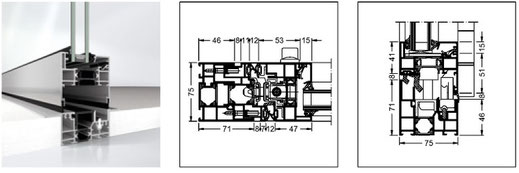

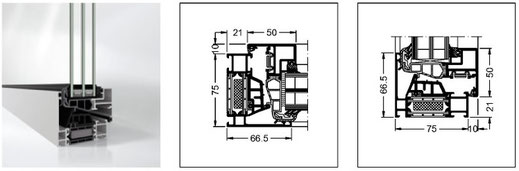

SCHÜCO WINDOW SYSTEM AWS 75 PD.SI

Maximum transparency through minimal view width

The fusion of form and function, along with energy efficiency, is now a fundamental requirement for the realization of modern building envelopes. With the Schüco AWS 75 PD.SI (Panorama Design Super Insulated) window system, Schüco is the first to offer an opening unit that perfectly meets these architectural requirements:

– minimized internal and external face widths
– excellent thermal insulation

This is based on perfectly coordinated system properties:
a flush inner sash profile appearance and minimized gasket face widths, maximum transparency thanks to the narrowest external and internal face widths, and harmonized face widths in the fixed panel and opening unit for a uniform frame appearance.

Glass or Filling Thickness

Frame: 26 mm to 50 mm
Sash: 26 mm to 50 mm

Thermal Insulation (Glass)

mit Psi-Wert 0,031 W/mK und

• Uₓ-Wert 0,5 W/(m²K)

• Uₓ-Wert 0,7 W/(m²K)

mit Psi-Wert 0,036 W/mK und

• Uₓ-Wert 1,0 W/(m²K)

Thermal Insulation (Element)

(Element size W × H: 48" × 58")

• Uₓ-Wert 0,76 W/(m²K)

• Uₓ-Wert 0,93 W/(m²K)

• Uₓ-Wert 1,21 W/(m²K)

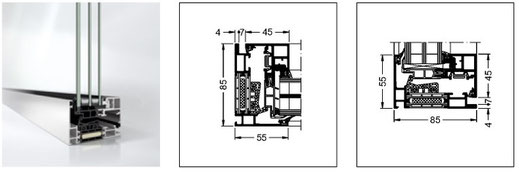

SCHÜCO WINDOW SYSTEM AWS 75 BS.SI

Highly thermally insulated block windows with concealed sash for sophisticated design requirements

With outstanding thermal insulation values and a sleek design without visible sash contours, Schüco AWS 75 BS.HI+ / SI+ (Block System High Insulated) meet the highest energy and architectural requirements while offering maximum transparency.

As part of the Schüco AWS modular system for a basic depth of 75 mm, the aluminum block window system impresses with its optimized functional, energy-efficient, and design properties.

Thanks to its high system flexibility, attractive design solutions can be implemented for a wide range of architectural requirements in the building envelope:
– as a punched window
– ribbon window
– or insert unit in Schüco façade systems
– or as a “floating window.”

Glass or Filling Thickness

Frame: 23 mm to 47 mm
Sash Frame: 16 mm to 52 mm (AWS 75 BS.HI+) and
16 mm to 54 mm (AWS 75 BS.SI+)

Thermal Insulation (Glass)

mit Psi-Wert 0,031 W/mK und

• Uₓ-Wert 0,5 W/(m²K)

• Uₓ-Wert 0,7 W/(m²K)

mit Psi-Wert 0,036 W/mK und

• Uₓ-Wert 1,0 W/(m²K)

Thermal Insulation Element

(Element size W × H: 48" × 58")

• Uₓ-Wert 0,88 W/(m²K) (AWS 75 BS.HI+) and Uₓ-Wert 0,80 W/(m²K) (AWS 75 BS.SI+)

• Uₓ-Wert 1,03 W/(m²K) (AWS 75 BS.HI+) and Uₓ-Wert 0,96 W/(m²K) (AWS 75 BS.SI+)

• Uₓ-Wert 1,28 W/(m²K) (AWS 75 BS.HI+) and Uₓ-Wert 1,20 W/(m²K) (AWS 75 BS.SI+)

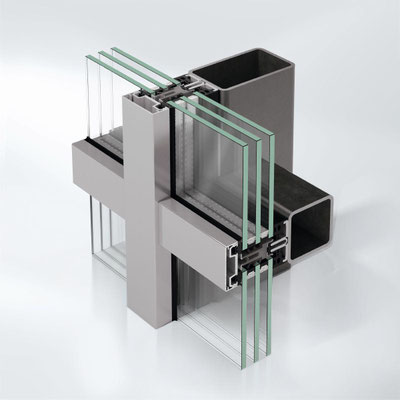

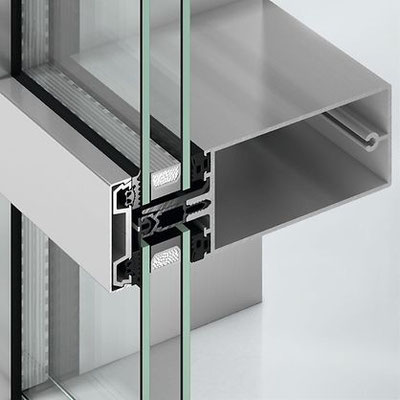

SCHÜCO Facade Wall FWS 35 PD.SI

Highly thermally insulated Panorama Design facade with integrated solution for all-glass corners.

Light-filled architecture with maximum transparency without compromise: The highest-quality thermally insulated façade system, Schüco FWS 35 PD.SI (Panorama Design Super Insulated), offers a system-integrated solution that allows the creation of all-glass corners without vertical mullion profiles and is passive house certified.

The result is prestigious Panorama Design façades with a first-class appearance and optimal outward visibility, meeting the highest demands in upscale residential and commercial construction.

Glass or Filling Thickness

4 mm up to 8 mm mm for single glass, 22 mm up to 50 mm

Thermal Insulation (Glass)

mit Psi-Wert 0,059 W/mK und

• Uₓ-Wert 0,5 W/(m²K)

• Uₓ-Wert 0,7 W/(m²K)

• Uₓ-Wert 1,0 W/(m²K)

Thermal Insulation (Element)

(Element size W × H: 59" × 98")

• Uₓ-Wert 0,65 W/(m²K)

• Uₓ-Wert 0,83 W/(m²K)

• Uₓ-Wert 1,10 W/(m²K)
